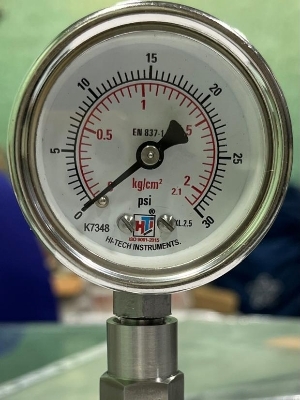

Diaphram gauge

Diaphram gauge Specification

Grade
Industrial

Outer Size
100 mm / 150 mm

Seal Material
PTFE / Neoprene / Stainless Steel

Bourdon Tube
Stainless Steel

Display
Analog

Sensor Type
Bourdon Tube with Diaphragm

Thread
1/2 BSP (M)

Material
Stainless Steel / Brass

Dial Material
Aluminum White Painted

Pointer Material
Black Painted Aluminum

Processing Type
Welded

Diameter
100 mm / 150 mm

Glass Size
100 mm

Mount Type
Bottom / Back Mount

Scale Range
0 to 10 kg/cm2 (Custom Range Available)

Accuracy
1.6% FSD

Finishing
Powder Coated / Polished

Measure Pressure Of
Corrosive and Viscous Media

Accessories
Mounting Flange, Gasket

Ingress Protection
IP65

Case Material
SS 304

Connection Location
Center / Back

Operating Temperature
-20C to +60C

Window Material
Shatterproof Glass / Acrylic

Overrange Protection
130% of Full Scale

Diaphragm Material
SS 316 / PTFE Lined

Usage
Chemical, Petrochemical, Food, Pharmaceutical, Water Treatment

Ring Type
Bayonet / Push-on

Diaphram gauge Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
10 Days

About Diaphram gauge

Pick Yours from the top-tier selection of diaphragm gauges, crafted for industrial leaders seeking brilliant, first-string performance. Each sought-after unit features a sturdy SS 304 case, shatterproof glass or acrylic window, and an SS 316 or PTFE-lined diaphragm-guaranteeing resilience in even the most challenging conditions. With scarce supply and overrange protection up to 130%, this analog gauge is engineered for reliability in chemical, petrochemical, food, and pharmaceutical sectors. Benefit from IP65 ingress protection, flexible mounting options, and a custom scale range to fit your needs.

Robust Material & Versatile Application

Take advantage of the SS 304 casing with a welded process, offering both strength and corrosion resistance. The diaphragm material options-SS 316 or PTFE lining-make this gauge ideal for corrosive and viscous media. Its suitability spans a range of industries such as chemical processing, petrochemical plants, food production, pharmaceuticals, and water treatment. This first-string gauge is purpose-built for demanding environments and is a brilliant choice for professionals seeking dependable measurement solutions.

Premium Packaging, Supply & Payments

Experience premium packaging designed to secure each diaphragm gauge during transit. Our supply ability ensures bulk and urgent purchase orders are promptly processed, guaranteeing top-notch delivery timelines. Payment terms are flexible-including various secure transaction options-making the procurement process seamless. Trust in our commitment to provide a smooth purchase experience from order to delivery, emphasizing the value of your investment in every transaction.

FAQ's of Diaphram gauge:

Q: How does the diaphragm gauge perform in corrosive environments?

A: The diaphragm gauge features a SS 316 or PTFE-lined diaphragm and a SS 304 case, allowing it to effectively measure pressure in corrosive and viscous media, making it well-suited for challenging environments.

Q: What industries commonly use this diaphragm gauge?

A: This gauge is widely sought-after in chemical, petrochemical, food processing, pharmaceutical, and water treatment industries thanks to its robust construction and reliable measurement capabilities.

Q: When should I select a custom scale range for my application?

A: Custom scale ranges are beneficial when your specific process requires precision beyond standard measurements. Consult with the supplier at the time of order to tailor the gauge to your unique requirements.

Q: Where can the diaphragm gauge be mounted?

A: The gauge offers mounting flexibility, with bottom and back mount options along with center or back connection locations, accommodating a variety of installation needs.

Q: What accessories are included with the diaphragm gauge purchase?

A: Each unit comes complete with essential accessories such as a mounting flange and gasket, ensuring secure and straightforward installation.

Q: How can I ensure premium supply and secure payment for bulk orders?

A: You can place purchase orders directly with the supplier. The company offers premium supply capabilities and flexible payment options, accommodating both large and urgent orders for a seamless procurement process.
